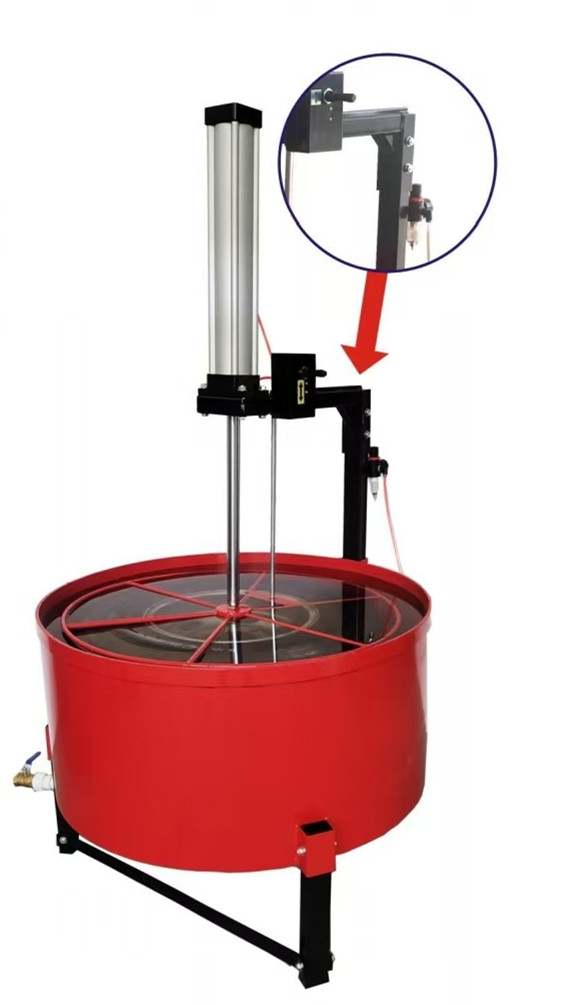

Pneumatic Tire Leak Tester Tank
Pneumatic car tire leak tester
Order online

Pneumatic car tire leak tester

BSD - T820

Available colors


Functions and usage of car tire leak tester:

The machine can detect whether the tire is leaking or the specific point on the surface. Use the water immersion method to detect. First put a proper amount of water into the tank, then put the pre - filled tire into the basket. Turn on the air source and then pull the cylinder's down switch, the piston rod moves downwards and drive the wire basket to sink into the water until the tires are all immersed in the water. If a bubble is found, it is a leak point here, and you need to mark it with a marker. After the front side has been inspected, pull the cylinder's ascending switch to raise the basket to the highest position, take out the tire and turn it back into the wire cage, and use the same method to detect the other side of the tire.

* Tank inner diameter 97.5cm

Tank inner height 46.8cm

* Iron cage inner diameter 81.5CM

Height 35CM

* Tire diameter and height will be limited by the size of the iron cage, and the maximum weight of the tire that can be carried is ≤65kg

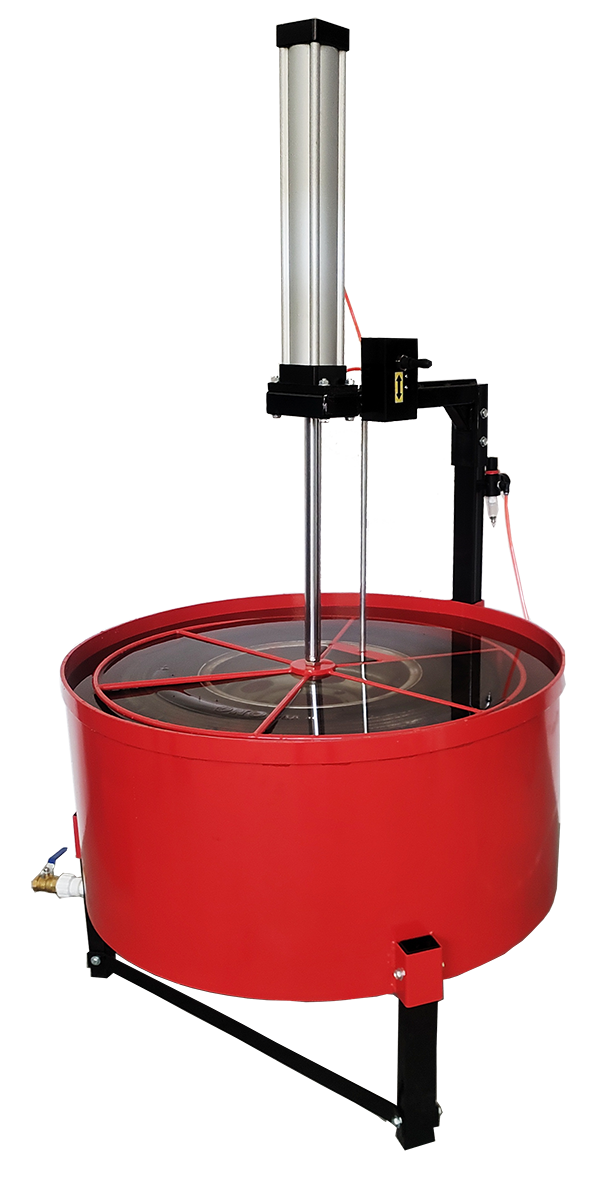

BSD-T820大图2 PNGX.png
